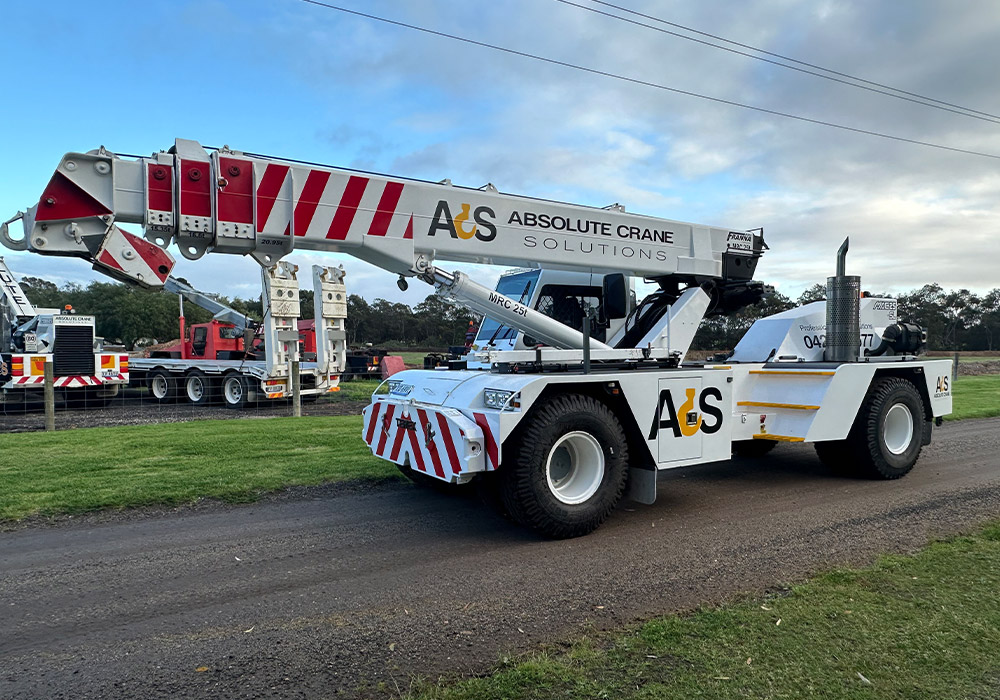

Terex Franna MAC25-3 Superlift (25T)

The MAC25-3 Superlift is a mobile articulated crane with a maximum lifting capacity of 25 tonne.

Terex Franna MAC25-3 Superlift (25T)

Max. load capacity: 25t
Max. boom length: 18.4m
Max. radius: 15.7m

The MAC25-3 Superlift comes equipped with maximum safety, superior roadability, intuitive operation, and unmatched versatility. Its tried and tested design has been proven across a wide range of challenging lifting applications, making it a customer favourite for many years.

With the Superlift system installed, this crane benefits from increased lifting capacity by up to 30% in certain configurations. The Superlift system works seamlessly with the existing counterweight, adding a low-slung additional counterweight at the rear of the machine, significantly enhancing its rated capacity and overall performance.

Dynamic LMI (patent protected)

First released in 2013, Franna’s patented Dynamic Load Moment Indicator (LMI) is a key feature of the MAC25. The system continuously calculates the machine’s rated capacity in real-time, factoring in variables such as boom configuration, chassis articulation, pitch, and roll. This ensures constant monitoring of structural limits, forward stability, and side stability, making the operation safer in all conditions.

The advanced measurement of articulation, pitch, and roll angles enables more precise capacity readings compared to earlier LMI systems. This dynamic adjustment is particularly beneficial when working on uneven terrain, as it automatically updates the rated capacity without requiring manual calculation from the operator. The Dynamic LMI offers real-time updates on the machine’s capacity utilisation (0-100%), enabling operators to make informed decisions even on challenging surfaces.

Key features include:

  • Automatic counterweight detection
  • Operator-set maximum working height
  • Maximum working radius
  • Maximum front axle weight
  • Rigging limits
  • Percentage of rated capacity

These advanced features ensure that the MAC25-3 Superlift provides exceptional performance and safety, even in the toughest job site conditions, making it a reliable choice for a wide range of lifting operations.
